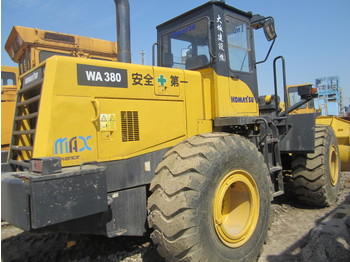

Wheel loader KOMATSU WA380-6

WA380-6 Specification

Engine

Make Komatsu

Model SAA6D107E

Net Power 191 hp 142 kw

Gross Power 192 hp 143 kw

Power Measured @ 2100 rpm

Displacement 408 cu in 6.7 L

Number of Cylinders 6

Aspiration Turbo-charged

Operational

Operating Weight 38760 lb 17580 kg

Fuel Capacity 79.3 gal 300 L

Hydrauilc System Fluid Capacity 36.6 gal 139 L

Engine Oil Fluid Capacity 6.1 gal 23 L

Cooling System Fluid Capacity 5.4 gal 20.5 L

Transmission Fluid Capacity 10 gal 38 L

Front Axle/Diff Fluid Capacity 10.6 gal 40 L

Rear Axle/Diff Fluid Capacity 10.6 gal 40 L

Static Tipping Weight 32100 lb 14560 kg

Turning Radius 47.4 ft in 14440 mm

Transmission

Type full-powershift, countershaft type

Number of Forward Gears 4

Number of Reverse Gears 4

Max Speed - Forward 22.2 mph 35.7 km/h

Max Speed - Reverse 25.4 mph 40.9 km/h

Hydraulic System

Pump Type Double-acting, piston type

Relief Valve Pressure 3555 psi 24510.8 kPa

Pump Flow Capacity 54.4 gal/min 206 L/min

Raise Time 5.9 sec

Dump Time 1.8 sec

Lower Time 3.3 sec

Bucket

Breakout Force 35495 lb 158 kN

Dump Clearance at Max Raise 9.7 ft in 2950 mm

Bucket Width 9.5 ft in 2905 mm

Bucket Capacity - heaped 4.3 yd3 3.3 m3
