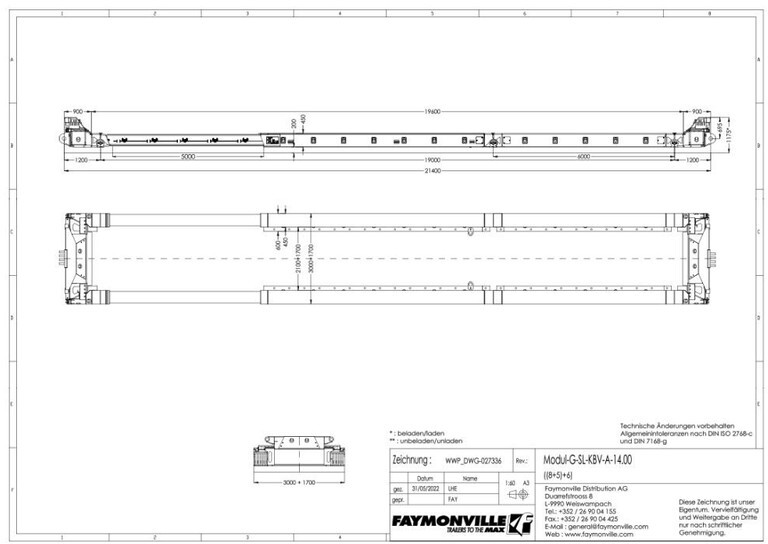

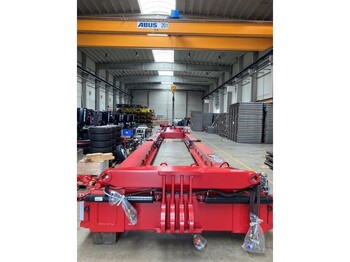

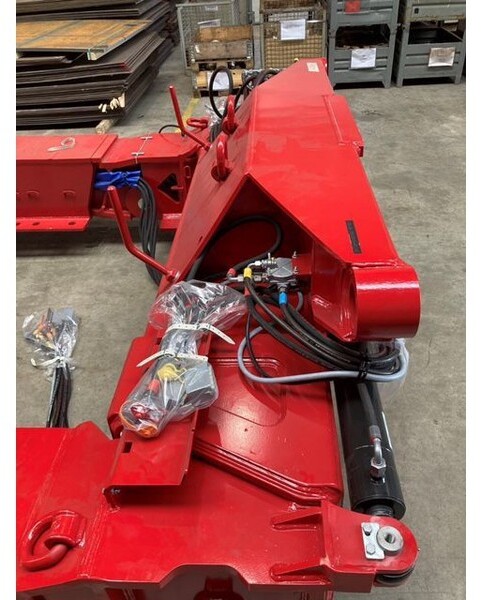

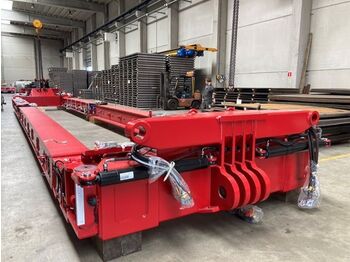

Flatbed body Faymonville G Module Vesseldeck 8 + 5 meter

Manufacturer: Faymonville

Type: G-Module Vesseldeck

Year: 2022

Connectable to Goldhofer THP SL

Coupling Heads

G-Modul-SL lowbed coupling head

Hydraulic extendable

Basic width: 3.000 mm

Hydraulic widenable to 4.700 mm

Beam height: 450 mm

Coupling lenght: 1.200 mm

Weight: 4.500 kg

4 pairs of lashing rings (LC 16.000 daN

2 alignment pins

Control panel for hydraulic adjustments

Colour: RAL 3002

Telecopic Beams

1 pair telescopic beams

Lenght: 8.000 mm + 5.000 mm

Total lenght : 13.000 mm

Construction height: 450 mm

Beam width: 450/600 mm

Weight 9.600 kg

Lashing rings every 1.000 mm

LC 10.000 daN

430 MTO

Compression joint in front and rear

Colour: RAL 3002

Elongation Beams

1 pair of Elongation beams

Coupling lenght: 6.000 mm

Construction height: 450 mm

Beam width: 450/600 mm

Weight: 4.300 kg

Lasing rings every 1.000 mm

LC 10.000 daN

560 MTO

Compression joint in front and rear

Colour: RAL 3002

Coupling Pin

1 Hydraulic coupling pin for G-Modul

1 Connecting lines kit for coupling pin G-Modul

More information

Technical condition: very good

Visual appearance: very good

Damages: none
